- Unit selection based on air volume Q: M3/H
- Select unit PA based on wind pressure
- Electric heating power unit KW
- Unit selection based on air volume Q: M3/H
- Based on suction selection, unit MBAR
- Based on pressure selection, unit MBAR
model: HAM-MR10A-31
specifications: E3380-10D-055Y
Rated voltage: Three phase 380V
frequency: 50Hz
Electric heating power: 10KW
Motor power: 750W
Air inlet temperature: ordinary temperature
Air outlet temperature: ordinary temperature~350℃
Maximum air volume: 960m3/h
Maximum wind pressure: 1980Pa

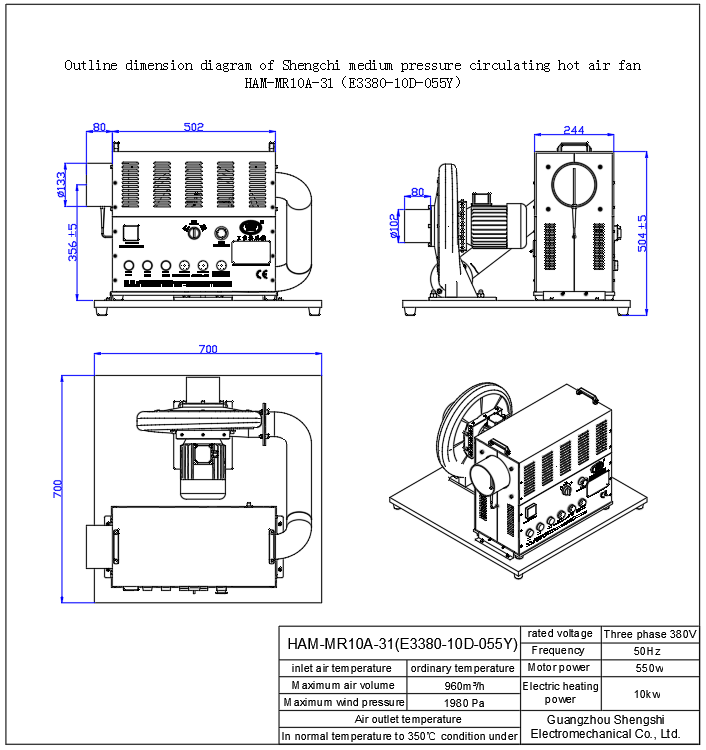

Size(L*W*H) : 700*700*460.5(mm)
notes: Please inform the local usage voltage and frequency when ordering products. The voltage used in China is ：single-phase 220V/three-phase 380V/frequency 50Hz
Product Overview
Sheng chi Hot Air Generator is a preferred product for upgrading and upgrading modern industrial heat sources, developed on the basis of full learning of international leading technologies. It is widely used in various industries such as electronics, food, pharmaceuticals, printing, packaging, cleaning, and heat treatment, and has a very good application prospect. It is the best hot air source configuration for automation machinery in the hot air drying industry.
1，Reasonably designed based on wind tunnel effects,the outlet air passes uniformly through the inside/outside of the spiral electric heating wire,with high heat exchange rate and less loss of air volume and pressure.
2 ，The heating wire is wound with 2080 nickel chromium wire,and the air is evenly distributed without generating exhaust gas or special odor.
3，Equipped with multiple overheating and overload protection devices,as well as power outage protection, multi fiber insulation cotton insulation,sturdy casing,reliable use,and can operate and work non-stop 365 days a year.
4，The maximum air outlet temperature is 350 degrees.
5，The air outlet is equipped with a K-type thermocouple,which is controlled by PID/SSR,with a precise temperature control of up to 1 degree,fast feedback,and long-lasting durability.
6，It can be equipped with a frequency converter to adjust the motor speed to achieve the accurate adjustment of air volume requirements,or the power can be adjusted by uninterrupted pressure regulation,which can more accurately grasp the temperature and air volume. Multiple configurations can be selected to better meet the needs of different users.
7，Additionally, it is equipped with dedicated temperature control equipment.The switch and temperature control adjustment part can be installed on the surface of the fan or remotely(with additional connectors)for easy operation and control.
8，Usage environment:below 40 degrees Celsius,humidity below 90%.
PRODUCT SPECIFICATIONS
The above air volume and pressure are performance parameters of the fan, and there is a deviation when matching with a hot air generator!
FAQ
Q1：Are you a factory or a trading company?
A1：factory.
Q2：What is your warranty?
A2：1 year warranty, limited to the body of the aircraft and excluding consumables.
Q3：How do we ensure quality?
A3:Strictly follow the product process for production,conduct final inspection before shipment,and only package and ship afterpassing the inspection.
Q4:Can the product be customized according to the parameter requirements?
A4:Special models can be customized according tocustomer requirements. For more details, please consult our customer service personnel.
